벡터의 성질 [ BP, C++ ]

---

[ C++ 구현은 Cube를 부모로 하여 상속을 받아서 자식 Cube 생성 ]

// Cube.h

#pragma once

#include "CoreMinimal.h"
#include "GameFramework/Actor.h"
#include "CCube.generated.h"

UCLASS()
class EXAMPLE_API ACCube : public AActor
{
	GENERATED_BODY()

protected:
	UPROPERTY(VisibleAnywhere)
	class USceneComponent* Scene;

	UPROPERTY(VisibleAnywhere)
	class UStaticMeshComponent* StaticMesh;

public:
	ACCube();

};

// Cube.cpp

#include "Vector/CCube.h"
#include "Global.h"
#include "Components/SceneComponent.h"
#include "Components/StaticMeshComponent.h"

ACCube::ACCube()
{
	PrimaryActorTick.bCanEverTick = true;

	CHelpers::CreateComponent<USceneComponent>(this, &Scene, "Scene", RootComponent);
	CHelpers::CreateComponent<UStaticMeshComponent>(this, &StaticMesh, "StaticMesh", Scene);

	static ConstructorHelpers::FObjectFinder<UStaticMesh> SM_Asset(TEXT("/Script/Engine.StaticMesh'/Game/Vector/Meshes/Cube.Cube'"));
	if (SM_Asset.Succeeded())
		StaticMesh->SetStaticMesh(SM_Asset.Object);
}





벡터의 첫번째 성질

위치(Location) + 위치(Location) = 두개의 위치가 합해진 위치(Location)

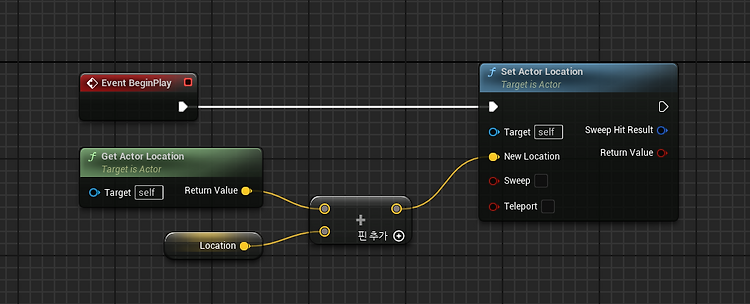

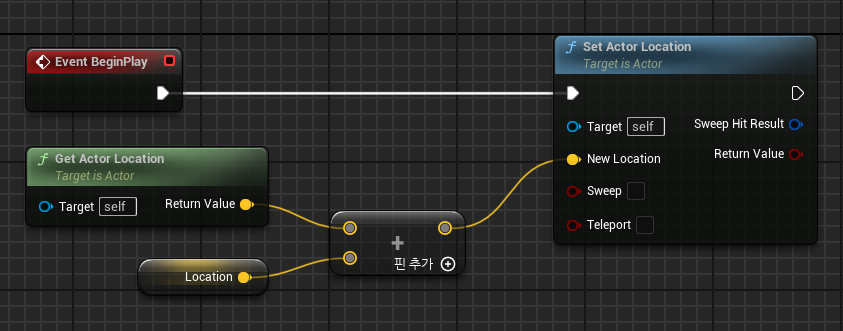

[ Blueprint 구현 ]



[ C++ 구현 ]

// Cube_Location.h

#pragma once

#include "CoreMinimal.h"
#include "Vector/CCube.h"
#include "CCube_Location.generated.h"

UCLASS()
class EXAMPLE_API ACCube_Location : public ACCube
{
	GENERATED_BODY()

public:
	ACCube_Location();

protected:
	virtual void BeginPlay() override;

private:
	FVector Location = { 100, -200, 0 };
};

// Cube_Location.cpp

#include "Vector/CCube_Location.h"

ACCube_Location::ACCube_Location()
{
	static ConstructorHelpers::FObjectFinder<UMaterialInstance> M_Asset(TEXT("/Script/Engine.MaterialInstanceConstant'/Game/Vector/Materials/MI_Blue.MI_Blue'"));
	if (M_Asset.Succeeded())
		StaticMesh->SetMaterial(0, M_Asset.Object);

}

void ACCube_Location::BeginPlay()
{
	this->SetActorLocation(this->GetActorLocation() + Location);

}

---

벡터의 두번째 성질

위치(Location) + ( 방향(Direction) + 거리(Distance) ) = 해당 방향으로 거리만큼 이동한 위치(Location)



[ Blueprint 구현 ]



[ C++ 구현 ]

// Cube_Direction.h

#pragma once

#include "CoreMinimal.h"
#include "Vector/CCube.h"
#include "CCube_Direction.generated.h"

UCLASS()
class EXAMPLE_API ACCube_Direction : public ACCube
{
	GENERATED_BODY()

public:
	ACCube_Direction();

protected:
	virtual void BeginPlay() override;

private:
	FVector Direction = { 1, 1, 0 };
	float Distance = 200;

};

// Cube_Direction.cpp

#include "Vector/CCube_Direction.h"

ACCube_Direction::ACCube_Direction()
{
	static ConstructorHelpers::FObjectFinder<UMaterialInstance> M_Asset(TEXT("/Script/Engine.MaterialInstanceConstant'/Game/Vector/Materials/MI_Red.MI_Red'"));
	if (M_Asset.Succeeded())
		StaticMesh->SetMaterial(0, M_Asset.Object);

}

void ACCube_Direction::BeginPlay()
{
	this->SetActorLocation(this->GetActorLocation() + (Direction.GetSafeNormal() * Distance));

}

---

벡터의 세번째 성질

A의 위치(Location) - B의 위치(Location) = B가 A를 바라보는 방향(Direction)



[ Blueprint 구현 ]



[ C++ 구현 ]

// Cube_Trace.h

#pragma once

#include "CoreMinimal.h"
#include "Vector/CCube.h"
#include "CCube_Trace.generated.h"

UCLASS()
class EXAMPLE_API ACCube_Trace : public ACCube
{
	GENERATED_BODY()

public:
	ACCube_Trace();

protected:
	virtual void Tick(float DeltaSeconds) override;

protected:
	UPROPERTY(EditInstanceOnly)
	class AActor* OtherActor;

private:
	float Speed = 100;
	float Distance = 200;

};

// Cube_Trace.cpp

#include "Vector/CCube_Trace.h"
#include "Kismet/KismetSystemLibrary.h"

ACCube_Trace::ACCube_Trace()
{
	static ConstructorHelpers::FObjectFinder<UMaterialInstance> M_Asset(TEXT("/Script/Engine.MaterialInstanceConstant'/Game/Vector/Materials/MI_Green.MI_Green'"));
	if (M_Asset.Succeeded())
		StaticMesh->SetMaterial(0, M_Asset.Object);

}

void ACCube_Trace::Tick(float DeltaSeconds)
{
	Super::Tick(DeltaSeconds);

	if (!!OtherActor)
	{
		FVector ToDistance = OtherActor->GetActorLocation() - this->GetActorLocation();

		float DelSpeed = DeltaSeconds * Speed;

		if (GetDistanceTo(OtherActor) > Distance)
			this->SetActorLocation((DelSpeed * ToDistance.GetSafeNormal()) + this->GetActorLocation());
		else UKismetSystemLibrary::QuitGame(GetWorld(), nullptr, EQuitPreference::Quit, false);
	}

}
